Koetter-Vardy decoding simulation for channel coding. More...

#include <KVChanSim.h>

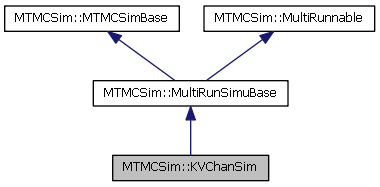

Inheritance diagram for MTMCSim::KVChanSim:

Classes
class	KVChanCompRes
	The computed results from input parameters. More...

class	KVChanPara
	The parameters for the simulation. More...

class	KVChanSimuRes
	The simulation results. More...

class	ThreadWorkSpace
	Work space for each thread. More...

class	XNSeq
	A random number object for this problem is one source sequence and one channel noise sequence (standard normal). More...

Public Member Functions
	KVChanSim (KVChanPara &para_, TextSaveUI &resFile_, TextSaveUI &tempFile_, DispUI &dispUI_)

void	prepare (const MCThreadInfo &)
	This function will be called by the scheduler before the threads are created. More...

void	oneThread (shared_ptr< RNObj >, const MCThreadInfo &)
	The work to be done by a worker thread. More...

shared_ptr< RNObj >	genRNObj ()
	Returns the random number object, usually they are random sequences. More...

void	dumpOneResult (const MCThreadInfo &)
	Put the result from one thread to the final result object. More...

void	setCompResMap (compResMap &compResM_) const
	Calls compRes.setMapping(compResM_);. More...

void	postProcess ()
	This function will be called after the RNG thread and worker threads are done. More...

virtual bool	checkTerm ()
	Return true if the terminate condition satisfies. More...

Public Member Functions inherited from MTMCSim::MultiRunSimuBase
	MultiRunSimuBase (int mode_, SimuPara &simupara)

virtual	~MultiRunSimuBase ()

Public Member Functions inherited from MTMCSim::MTMCSimBase
void	singleThreadSim ()
	Single thread simulation. More...

virtual	~MTMCSimBase ()
	Virtual Destructor. More...

Public Member Functions inherited from MTMCSim::MultiRunnable
virtual shared_ptr< SimuPara >	getNextPara ()
	Get the parameter for the next simulation. More...

virtual bool	quit () const
	Check if terminate the whole simulation series. More...

	MultiRunnable ()
	Default constructor. More...

	MultiRunnable (int mode_, SimuPara &simupara)

virtual	~MultiRunnable ()

Additional Inherited Members
Protected Attributes inherited from MTMCSim::MultiRunnable
int	mulMode

bool	isQuit

shared_ptr< SimuPara >	nextPara

Detailed Description

Koetter-Vardy decoding simulation for channel coding.

The simulation is for channel coding scenario.

Constructor & Destructor Documentation

MTMCSim::KVChanSim::KVChanSim	(	KVChanPara &	para_,
		TextSaveUI &	resFile_,
		TextSaveUI &	tempFile_,
		DispUI &	dispUI_
	)

Member Function Documentation

bool MTMCSim::KVChanSim::checkTerm ( )

virtual

Return true if the terminate condition satisfies.

Thread safty is partially guaranteed by the scheduler. The result object will be locked but only the result object will be locked. So, typically it only reads the parameter object (which is always safe) and reads the result object (because the result object is locked by the scheduler)

Implements MTMCSim::MTMCSimBase.

void MTMCSim::KVChanSim::dumpOneResult ( const MCThreadInfo & )

virtual

Put the result from one thread to the final result object.

It itself does not need to consider thread safty because a mutex will be locked before it is called.

Implements MTMCSim::MTMCSimBase.

shared_ptr< RNObj > MTMCSim::KVChanSim::genRNObj ( )

virtual

Returns the random number object, usually they are random sequences.

Each object is for one thread. The object is created by "new" inside the function and can be accessed througth the renturned shared_ptr.

Implements MTMCSim::MTMCSimBase.

void MTMCSim::KVChanSim::oneThread	(	shared_ptr< RNObj >	,
		const MCThreadInfo &
	)

virtual

The work to be done by a worker thread.

This function should be written in a thread-safe manner, i.e., no conflict. no critical section. This typically can be done by creating workspace for each thread, either as an automatic variable in the function, or as a data member in the simulator class.

Implements MTMCSim::MTMCSimBase.

void MTMCSim::KVChanSim::postProcess ( )

virtual

This function will be called after the RNG thread and worker threads are done.

Reimplemented from MTMCSim::MTMCSimBase.

void MTMCSim::KVChanSim::prepare ( const MCThreadInfo & )

virtual

This function will be called by the scheduler before the threads are created.

\ Typically do resource allocation here.

Reimplemented from MTMCSim::MTMCSimBase.

void MTMCSim::KVChanSim::setCompResMap ( compResMap & compResM_) const

virtual
